The Linux system is a great platform for offering networking services. In this section, we will try to give an overview of most common network servers and applications.
Offering a service to users can be approached in two ways. A daemon or service can run in standalone mode, or it can be dependent on another service to be activated.
Network services that are heavily and/or continuously used, usually run in the standalone mode: they are independent program daemons that are always running. They are most likely started up at system boot time, and they wait for requests on the specific connection points or ports for which they are set up to listen. When a request comes, it is processed, and the listening continues until the next request. A web server is a typical example: you want it to be available 24 hours a day, and if it is too busy it should create more listening instances to serve simultaneous users. Other examples are the large software archives such as Sourceforge or your Tucows mirror, which must handle thousands of FTP requests per day.
An example of a standalone network service on your home computer might be the named (name daemon), a caching name server. Standalone services have their own processes running, you can check any time using ps:
bob:~> ps auxw | grep named named 908 0.0 1.0 14876 5108 ? S Mar14 0:07 named -u named
However, there are some services that you can use on your PC, even if there is no server process running for that services. Examples could be the FTP service, the secure copy service or the finger service. Those services have the Internet Daemon (inetd) listening in their place.
On your home PC, things are usually a bit calmer. You may have a small network, for instance, and you may have to transfer files from one PC to another from time to time, using FTP or Samba (for connectivity with MS Windows machines). In those cases, starting all the services which you only need occasionally and having them run all the time would be a waste of resources. So in smaller setups, you will find the necessary daemons dependent on a central program, that listen on all the ports of the services for which it is responsible.
This super-server, the Internet services daemon, is started up at system initialization time. There are two common implementations: inetd and xinetd (the extended Internet services daemon). One or the other is usually running on every Linux system:
bob:~> ps -ef | grep inet root 926 1 0 Mar14 ? 00:00:00 xinetd-ipv6 -stayalive -reuse \ -pidfile /var/run/xinetd.pid
The services for which the Internet daemon is responsible, are listed in its configuration file, /etc/inetd.conf, for inetd, and in the directory /etc/xinetd.d for xinetd. Commonly managed services include file share and print services, SSH, FTP, telnet, the Samba configuration daemon, talk and time services.
As soon as a connection request is received, the central server will start an instance of the required server. Thus, in the example below, when user bob starts an FTP session to the local host, an FTP daemon is running as long as the session is active:
bob:~> ps auxw | grep ftp bob 793 0.1 0.2 3960 1076 pts/6 S 16:44 0:00 ncftp localhost ftp 794 0.7 0.5 5588 2608 ? SN 16:44 0:00 ftpd: localhost.localdomain: firstname.lastname@example.org: IDLE
Of course, the same happens when you open connections to remote hosts: either a daemon answers directly, or a remote (x)inetd starts the service you need and stops it when you quit.
Sendmail is the standard mail server program or Mail Transport Agent for UNIX platforms. It is robust, scalable, and when properly configured with appropriate hardware, handles thousands of users without blinking. More information about how to configure Sendmail is included with the sendmail and sendmail-cf packages, you may want to read the README and README.cf files in /usr/share/doc/sendmail. The man sendmail and man aliases are also useful.
Qmail is another mail server, gaining popularity because it claims to be more secure than Sendmail. While Sendmail is a monolithic program, Qmail consists of smaller interacting program parts that can be better secured. Postfix is another mail server which is gaining popularity.
These servers handle mailing lists, filtering, virus scanning and much more. Free and commercial scanners are available for use with Linux. Examples of mailing list software are Mailman, Listserv, Majordomo and EZmlm. See the web page of your favorite virus scanner for information on Linux client and server support. Amavis and Spamassassin are free implementations of a virus scanner and a spam scanner.
The most popular protocols to access mail remotely are POP3 and IMAP4. IMAP and POP both allow offline operation, remote access to new mail and they both rely on an SMTP server to send mail.
While POP is a simple protocol, easy to implement and supported by almost any mail client, IMAP is to be preferred because:
It can manipulate persistent message status flags.
It can store as well as fetch mail messages.
It can access and manage multiple mailboxes.
It supports concurrent updates and shared mailboxes.
It is also suitable for accessing Usenet messages and other documents.
IMAP works both on-line and off-line.
it is optimized for on-line performance, especially over low-speed links.
There are plenty of both text and graphical E-mail clients, we'll just name a few of the common ones. Pick your favorite.
The UNIX mail command has been around for years, even before networking existed. It is a simple interface to send messages and small files to other users, who can then save the message, redirect it, reply to it etcetera.
While it is not commonly used as a client anymore, the mail program is still useful, for example to mail the output of a command to somebody:
mail <future.employer@whereIwant2work.com> < cv.txt
The elm mail reader is a much needed improvement to mail, and so is pine (Pine Is Not ELM). The mutt mail reader is even more recent and offers features like threading.
For those users who prefer a graphical interface to their mail (and a tennis elbow or a mouse arm), there are hundreds of options. The most popular for new users are Mozilla Mail/Thunderbird, which has easy anti-spam configuring options, and Evolution, the MS Outlook clone. Kmail is popular among KDE users.
There are also tens of web mail applications available, such as Squirrelmail, Yahoo! mail, gmail from Google and Hotmail.
An overview is available via the Linux Mail User HOWTO.
Most Linux distributions include fetchmail, a mail-retrieval and forwarding utility. It fetches mail from remote mail servers (POP, IMAP and some others) and forwards it to your local delivery system. You can then handle the retrieved mail using normal mail clients. It can be run in daemon mode to repeatedly poll one or more systems at a specified interval. Information and usage examples can be found in the Info pages; the directory /usr/share/doc/fetchmail[-<version>] contains a full list of features and a FAQ for beginners.
The procmail filter can be used for filtering incoming mail, to create mailing lists, to pre-process mail, to selectively forward mail and more. The accompanying formail program, among others, enables generation of auto-replies and splitting up mailboxes. Procmail has been around for years on UNIX and Linux machines and is a very robust system, designed to work even in the worst circumstances. More information may be found in the /usr/share/doc/procmail[-<version>] directory and in the man pages.
|A note on E-mail Etiquette|
Some people these days seem to think that an E-mail message shouldn't be too formal. That depends, of course. If you are writing to someone you don't know, best to keep some distance, just like you would do in a traditional letter. And don't forget: people you don't know might be male or female...
Apache is by far the most popular web server, used on more than half of all Internet web servers. Most Linux distributions include Apache. Apache's advantages include its modular design, SSL support, stability and speed. Given the appropriate hardware and configuration it can support the highest loads.
On Linux systems, the server configuration is usually done in the /etc/httpd directory. The most important configuration file is httpd.conf; it is rather self-explanatory. Should you need help, you can find it in the httpd man page or on the Apache website.
A number of web browsers, both free and commercial, exist for the Linux platform. Netscape Navigator as the only decent option has long been a thing of the past, as Mozilla/Firefox offers a competitive alternative running on many other operating systems, like MS Windows and MacOS X as well.
Amaya is the W3C browser. Opera is a commercial browser, compact and fast. Many desktop managers offer web browsing features in their file manager, like nautilus.
Among the popular text based browsers are lynx and links. You may need to define proxy servers in your shell, by setting the appropriate variables. Text browsers are fast and handy when no graphical environment is available, such as when used in scripts.
Companies and organizations often want their users to use a proxy server. Especially in environments with lots of users, a proxy server can enable faster downloads of web pages. The proxy server stores web pages. When a user asks for a web page that has already been requested previously, the proxy server will give that page to the user directly, so that s/he does not need to get it from the Internet, which would take longer. Of course, measures can be taken so that the proxy server does a quick check and always serves the most recent version of a page. In some environments, usage of the proxy server is compulsory, in other environments you may have the choice whether or not to use it.
If you have the proxy server name and port, it should be rather obvious to feed that information into your browser. However, many (command line) applications depend on the variables http_proxy and ftp_proxy for correct functioning. For your convenience, you might want to add a line like the following to your ~/.bashrc:
If you do not need to give a username and password, simply leave out everything before the "@" sign, this sign included.
On a Linux system, an FTP server is typically run from xinetd, using the WU-ftpd server, although the FTP server may be configured as a stand-alone server on systems with heavy FTP traffic. See the exercises.
Other FTP servers include among others vsftpd, Ncftpd and Proftpd.
Most Linux distributions contain the anonftp package, which sets up an anonymous FTP server tree and accompanying configuration files.
Most Linux distributions include ncftp, an improved version of the common UNIX ftp command, which you may also know from the Windows command line. The ncftp program offers extra features such as a nicer and more comprehensible user interface, file name completion, append and resume functions, bookmarking, session management and more:
thomas:~> ncftp blob NcFTP 3.0.3 (April 15, 2001) by Mike Gleason (email@example.com). Connecting to blob... blob.some.net FTP server (Version wu-2.6.1-20) ready. Logging in... Guest login ok, access restrictions apply. Logged in to blob. ncftp / > help Commands may be abbreviated. 'help showall' shows hidden and unsupported commands. 'help <command>' gives a brief description of <command>. ascii cat help lpage open quote site bgget cd jobs lpwd page rename type bgput chmod lcd lrename pdir rhelp umask bgstart close lchmod lrm pls rm version binary debug lls lrmdir put rmdir bookmark dir lmkdir ls pwd set bookmarks get lookup mkdir quit show ncftp / >
Excellent help with lot of examples can be found in the man pages. And again, a number of GUI applications are available.
|FTP is insecure!|
Don't use the File Transfer Protocol for non-anonymous login unless you know what you are doing. Your user name and password might be captured by malevolent fellow network users! Use secure FTP instead; the sftp program comes with the Secure SHell suite, see Section 10.4.4.4.
Various clients and systems are available in each distribution, replacing the old-style IRC text-based chat. A short and incomplete list of the most popular programs:
gaim: multi-protocol instant messaging client for Linux, Windows and Mac, compatible with MSN Messenger, ICQ, IRC and much more; see the Info pages or the Gaim site for more.

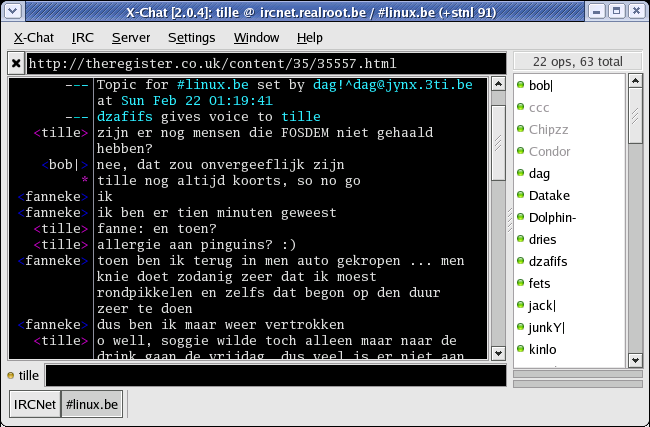

xchat: IRC client for the X window system:
The home page is at SourceForge.
aMSN: an MSN clone.
Konversation, kopete, KVIrc and many other K-tools from the KDE suite.
gnomemeeting: videoconferencing program for UNIX (now Ekiga).
jabber: Open Source Instant Messenging platform, compatible with ICQ, AIM, Yahoo, MSN, IRC, SMTP and much more.
psi: jabber client, see the PSI Jabber Client Homepage.
skype: program for making telephone-like calls over the Internet to other Skype users, see http://www.skype.com for more info. Skype is free but not open.
Gizmo: a free (but not open) phone for your computer, see http://www.gizmoproject.com.
Running a Usenet server involves a lot of expertise and fine-tuning, so refer to the INN homepage for more information.
There are a couple of interesting newsgroups in the comp.* hierarchy, which can be accessed using a variety of text and graphical clients. A lot of mail clients support newsgroup browsing as well, check your program or see your local Open Source software mirror for text clients such as tin, slrnn and mutt, or download Mozilla or one of a number of other graphical clients.
Deja.com keeps a searchable archive of all newsgroups, powered by Google. This is a very powerful instrument for getting help: chances are very high that somebody has encountered your problem, found a solution and posted it in one of the newsgroups.
All these applications need DNS services to match IP addresses to host names and vice versa. A DNS server does not know all the IP addresses in the world, but networks with other DNS servers which it can query to find an unknown address. Most UNIX systems can run named, which is part of the BIND (Berkeley Internet Name Domain) package distributed by the Internet Software Consortium. It can run as a stand-alone caching nameserver, which is often done on Linux systems in order to speed up network access.
Your main client configuration file is /etc/resolv.conf, which determines the order in which Domain Name Servers are contacted:
search somewhere.org nameserver 192.168.42.1 nameserver 18.104.22.168
DHCP is the Dynamic Host Configuration Protocol, which is gradually replacing good old bootp in larger environments. It is used to control vital networking parameters such as IP addresses and name servers of hosts. DHCP is backward compatible with bootp. For configuring the server, you will need to read the HOWTO.
DHCP client machines will usually be configured using a GUI that configures the dhcpcd, the DHCP client daemon. Check your system documentation if you need to configure your machine as a DHCP client.
Traditionally, users are authenticated locally, using the information stored in /etc/passwd and /etc/shadow on each system. But even when using a network service for authenticating, the local files will always be present to configure system accounts for administrative use, such as the root account, the daemon accounts and often accounts for additional programs and purposes.
These files are often the first candidates for being examined by hackers, so make sure the permissions and ownerships are strictly set as should be:
bob:~> ls -l /etc/passwd /etc/shadow -rw-r--r-- 1 root root 1803 Mar 10 13:08 /etc/passwd -r-------- 1 root root 1116 Mar 10 13:08 /etc/shadow
Linux can use PAM, the Pluggable Authentication Module, a flexible method of UNIX authentication. Advantages of PAM:
A common authentication scheme that can be used with a wide variety of applications.
PAM can be implemented with various applications without having to recompile the applications to specifically support PAM.
Great flexibility and control over authentication for the administrator and application developer.
Application developers do not need to develop their program to use a particular authentication scheme. Instead, they can focus purely on the details of their program.
The directory /etc/pam.d contains the PAM configuration files (used to be /etc/pam.conf). Each application or service has its own file. Each line in the file has four elements:
auth: provides the actual authentication (perhaps asking for and checking a password) and sets credentials, such as group membership or Kerberos tickets.
account: checks to make sure that access is allowed for the user (the account has not expired, the user is allowed to log in at this time of day, and so on).
password: used to set passwords.
session: used after a user has been authenticated. This module performs additional tasks which are needed to allow access (for example, mounting the user's home directory or making their mailbox available).
The order in which modules are stacked, so that multiple modules can be used, is very important.
Control Flags: tell PAM which actions to take upon failure or success. Values can be required, requisite, sufficient or optional.
Module Path: path to the pluggable module to be used, usually in /lib/security.
Arguments: information for the modules
Shadow password files are automatically detected by PAM.
More information can be found in the pam man pages or at the Linux-PAM project homepage.
The Lightweight Directory Access Protocol is a client-server system for accessing global or local directory services over a network. On Linux, the OpenLDAP implementation is used. It includes slapd, a stand-alone server; slurpd, a stand-alone LDAP replication server; libraries implementing the LDAP protocol and a series of utilities, tools and sample clients.
The main benefit of using LDAP is the consolidation of certain types of information within your organization. For example, all of the different lists of users within your organization can be merged into one LDAP directory. This directory can be queried by any LDAP-enabled applications that need this information. It can also be accessed by users who need directory information.
Other LDAP or X.500 Lite benefits include its ease of implementation (compared to X.500) and its well-defined Application Programming Interface (API), which means that the number of LDAP-enabled applications and LDAP gateways should increase in the future.
On the negative side, if you want to use LDAP, you will need LDAP-enabled applications or the ability to use LDAP gateways. While LDAP usage should only increase, currently there are not very many LDAP-enabled applications available for Linux. Also, while LDAP does support some access control, it does not possess as many security features as X.500.
Since LDAP is an open and configurable protocol, it can be used to store almost any type of information relating to a particular organizational structure. Common examples are mail address lookups, central authentication in combination with PAM, telephone directories and machine configuration databases.
See your system specific information and the man pages for related commands such as ldapmodify and ldapsearch for details. More information can be found in the LDAP Linux HOWTO, which discusses installation, configuration, running and maintenance of an LDAP server on Linux. The author of this Introduction to Linux document also wrote an LDAP Operations HOWTO, describing the basics everyone should know about when dealing with LDAP management, operations and integration of services.
